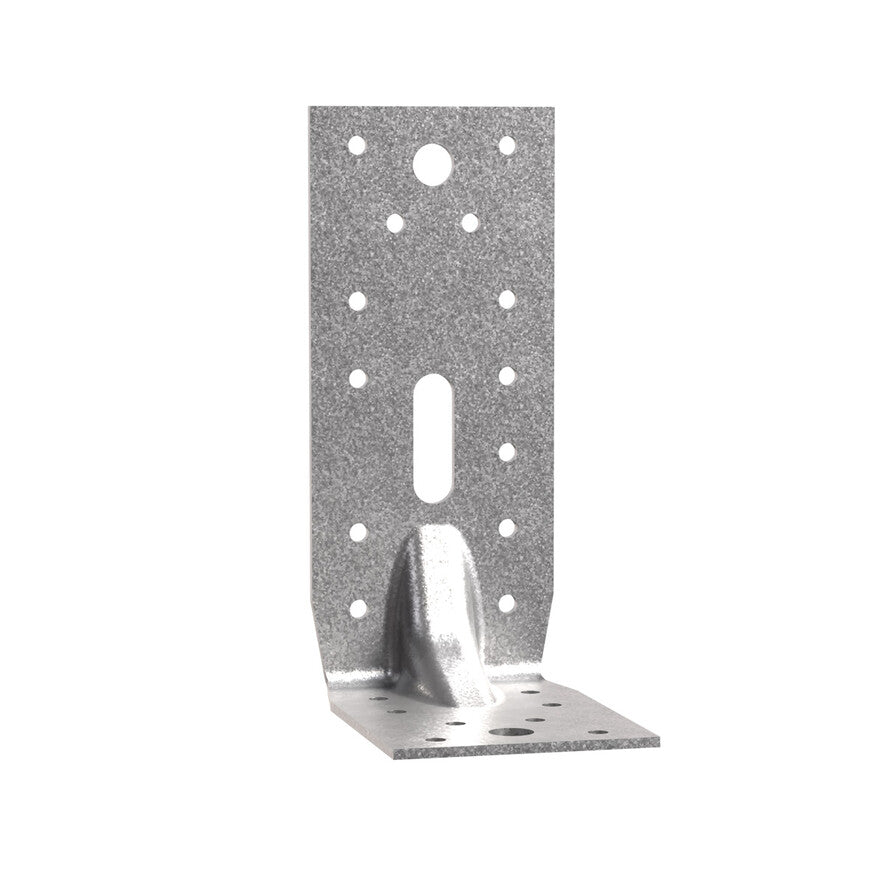

Simpson E9S/2.5 Large Reinforced Angle Bracket (10 Pack)

Simpson Strong Tie e9s/2.5 Large Reinforced Angle Bracket (10 Pack)

Reinforced angle brackets are suitable for structural applications in framing and wood-frame houses.

Specifications:

• Width: 65mm
• Lengths: 150mm, 90mm
• Thickness: 2.5mm
• Fixing Holes: 22 Screws or Nail holes with 5mm Diameter and 3 Bolt holes with 11mm diameter.
• Material: Pre-galvanised mild steel

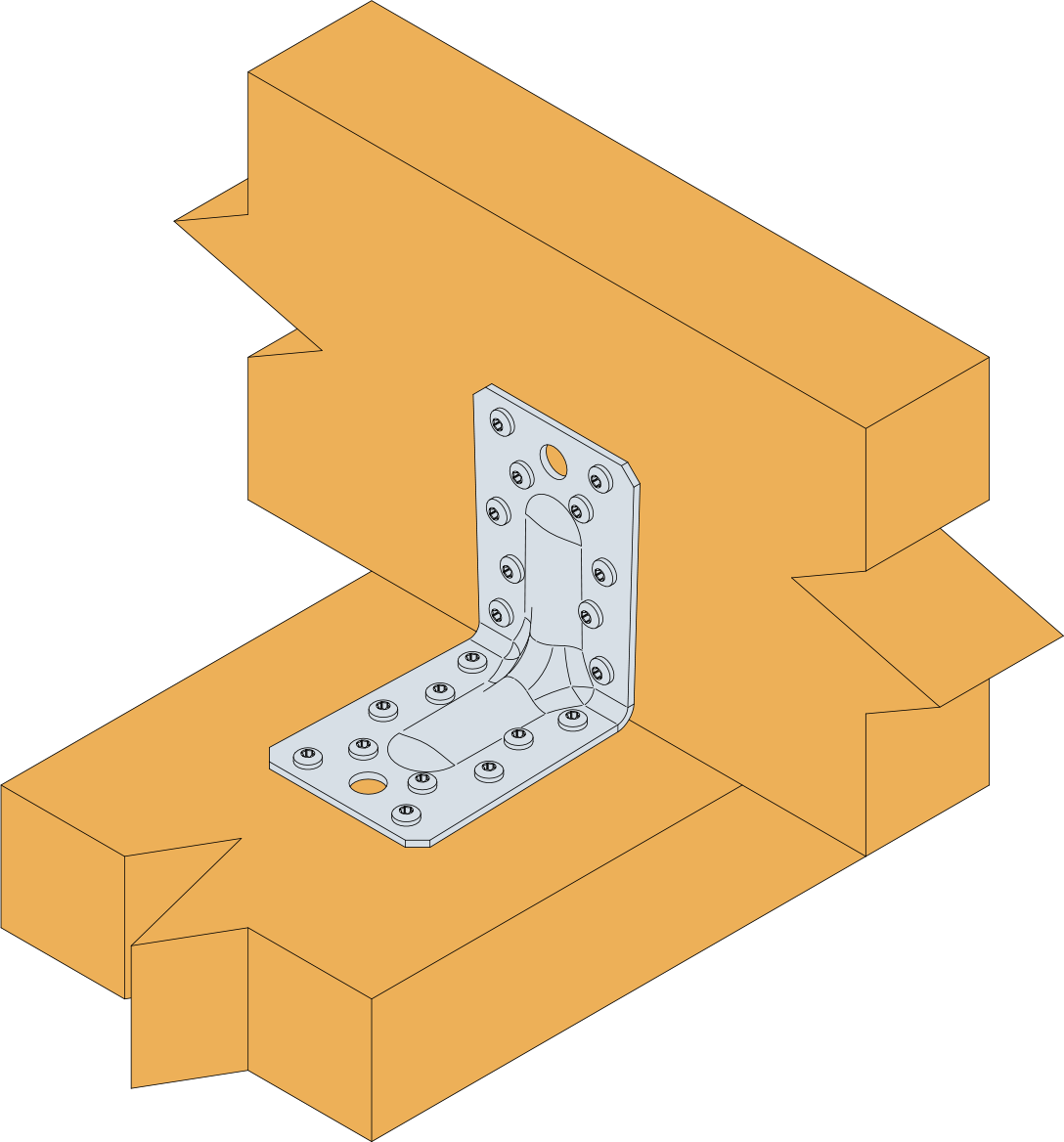

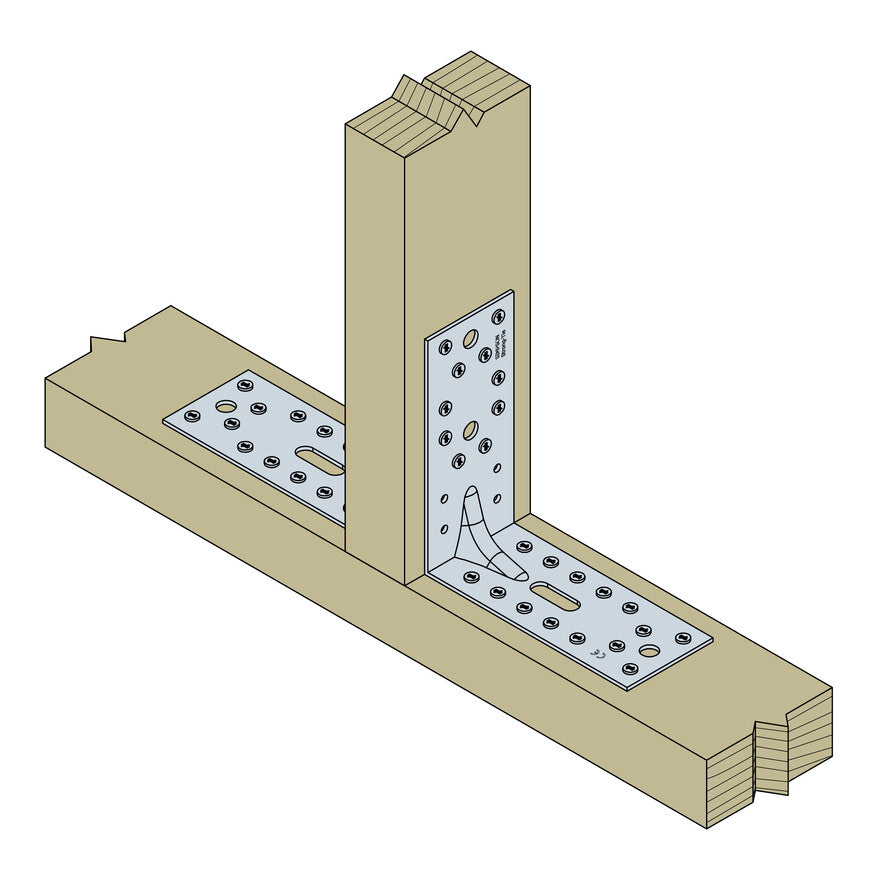

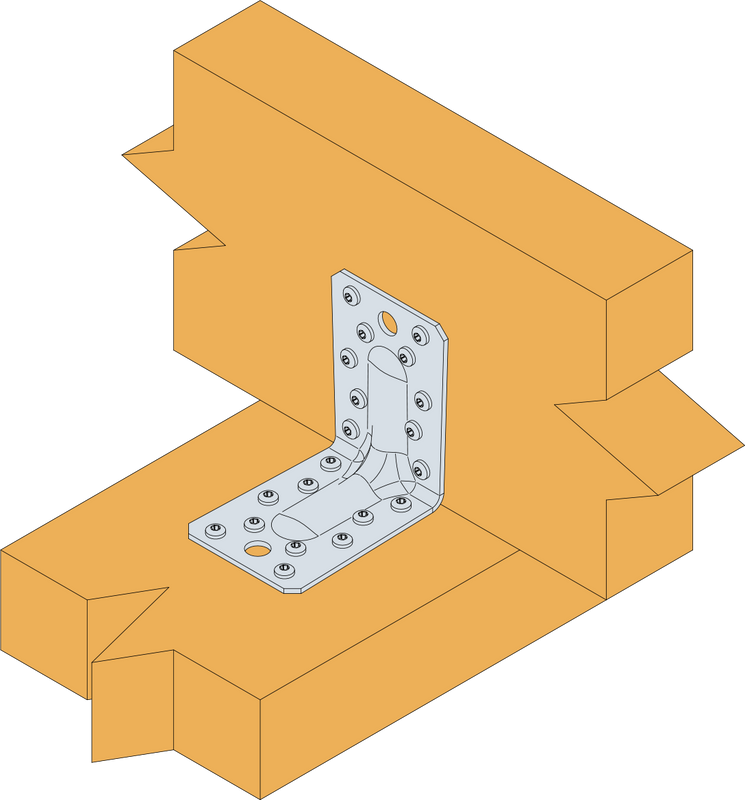

Can be used for:

• Fastening of small trusses
• Cladding plates, cladding uprights
• Rafter anchors, cantilevers, headers, etc.
