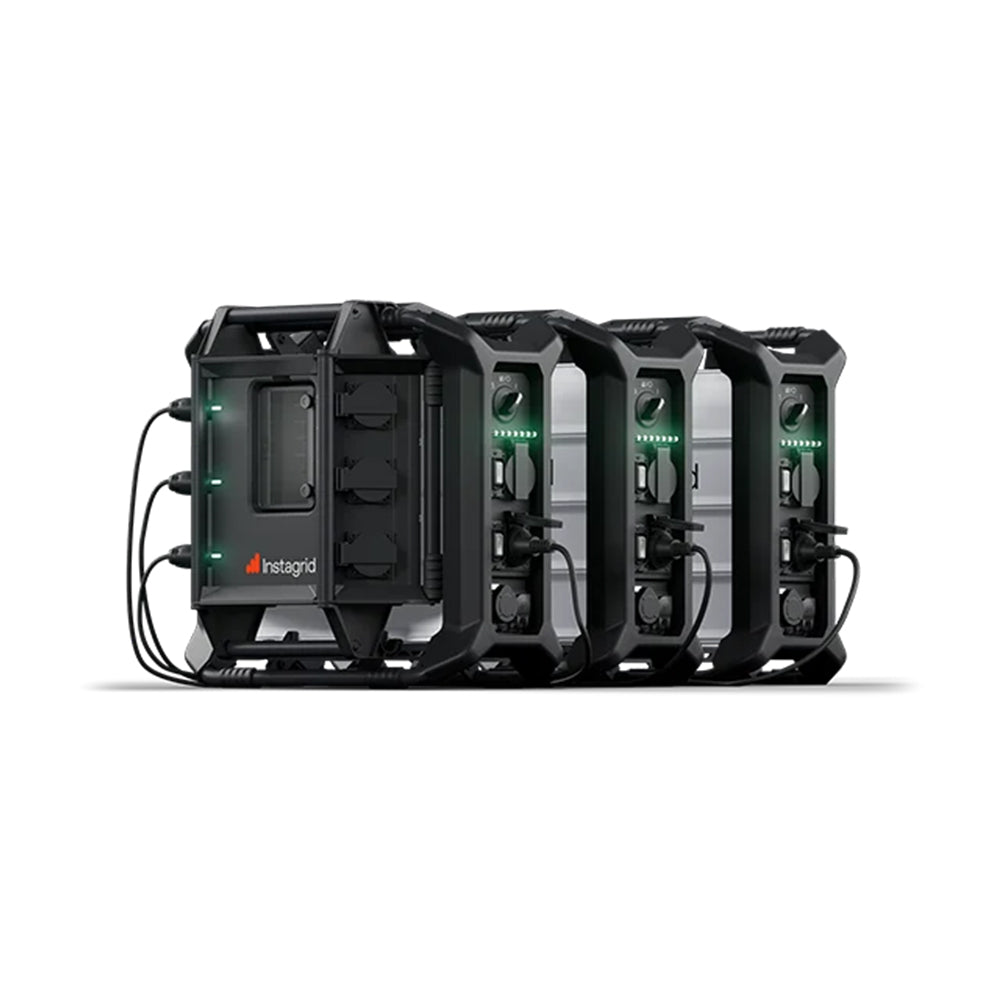

Instagrid ONE 400V LINK MAX Portable Battery Power Package

The Instagrid ONE 400V LINK MAX Battery Package delivers portable three-phase power for professional welding, construction and maintenance applications. Combining three Instagrid ONE 230V battery units with a LINK MAX power distributor, it creates a 400V, 16A three-phase supply wherever mains electricity is unavailable.

With 11kW rated output and up to 54kW peak power, the combined system supports compatible equipment such as welding machines, core drills, saws and pumps. Its high peak output helps accommodate brief starting loads, while the modular design allows each component to be carried separately.

Flexible 230V and 400V Power

Use the Instagrid ONE units individually for compatible 230V equipment, or connect all three through LINK MAX for 400V three-phase applications. This flexibility lets you adapt the setup to different jobs using the same battery units.

Quiet Power Without Exhaust Fumes

The rechargeable battery system supplies electricity without petrol, diesel or exhaust emissions during operation. Quiet running makes it a practical choice for indoor maintenance, refurbishment and locations where noise matters.

Key Features

• 400V three-phase output: 16A, 50Hz supply.

• 11kW rated system power with 54kW peak capability.

• Modular construction: components can be transported individually.

• IP54-rated LINK MAX: protection against dust ingress and splashing water.

• Built-in LINK MAX protection: phase monitoring, insulation monitoring and circuit breaker.

Package Contents

• 3 × Instagrid ONE 230V battery power supplies.

• 1 × Instagrid LINK MAX power distributor.

• 3 × connection cables.

• Operator manual.

Contact K Supplies for pricing, availability and advice on matching the Instagrid LINK MAX package to your equipment and runtime requirements.
