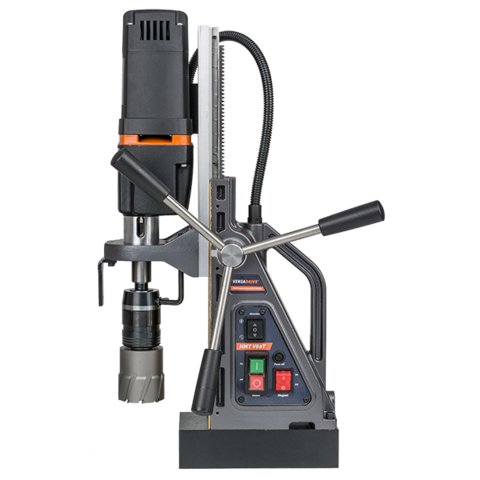

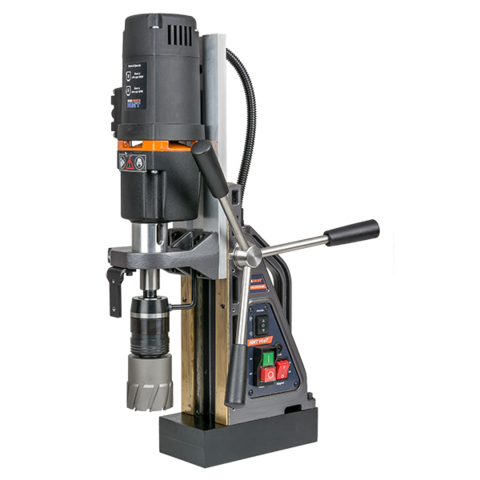

HMT Magnetic Base Dill V60T (240V) 850060-P-240 2MT

HoleMaker Technology
SKU: 850060
3 In Stock
Regular Price £1,389.95 Sale Price Unit price: £0.00
Includes VAT

The HMT VersaDrive V60T is the first UK Built portable drilling machine range designed for the 21st century, designed to meet a need in the market for a high-performance, lowmaintenance, industrial quality portable drilling unit and to deliver constant performance in the most challenging drilling environments and fabrication conditions.

Combining light weight and portability with a high power allday broaching capability up to 60mm diameter is combined with a forward reverse, variable speed motor that will tap holes up to M20 diameter. Fully rated for reaming, countersinking, and tapping. Advanced British electromagnets provide enhanced magnet hold for exceptional safety and stability.

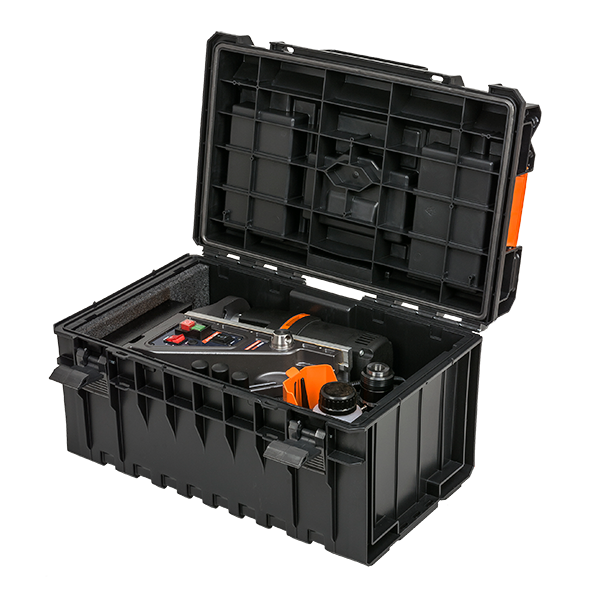

Supplied with handles, heavy duty metal sliding guard system, MT2 broaching arbor, VersaDrive arbor, heavy duty, waterproof, shock-resistant site case, gravity fed coolant system and VersaDrive Quick Change Arbor.

Technical Specification

CUTTER SIZE RANGE 12 - 60mm TCT
MAX CUTTER CAPACITY 60mm TCT
TWIST DRILL CAPACITY 20mm
MAX TAP CAPACITY M20
MAX COUNTERSINKING 40mm
LENGTH 315mm
WIDTH (Inc Handles) 220mm
HEIGHT (Min-Max) 385 - 605mm
STROKE 220mm
WEIGHT 18 kg
MAGNET (L X W) 200 x 100mm
MAGNETIC ADHESION 1750 kgs
MOTOR POWER 1150w
TOTAL POWER 1270w
SPEED RPM (No Load) 100 - 250 / 180 - 450
SPINDLE MT2
ARBOR 19,05 mm (¾€) Weldon
TAKES CHUCK Yes
COOLANT SYSTEM Gravity Oil Fed
WARRANTY 2 Year
