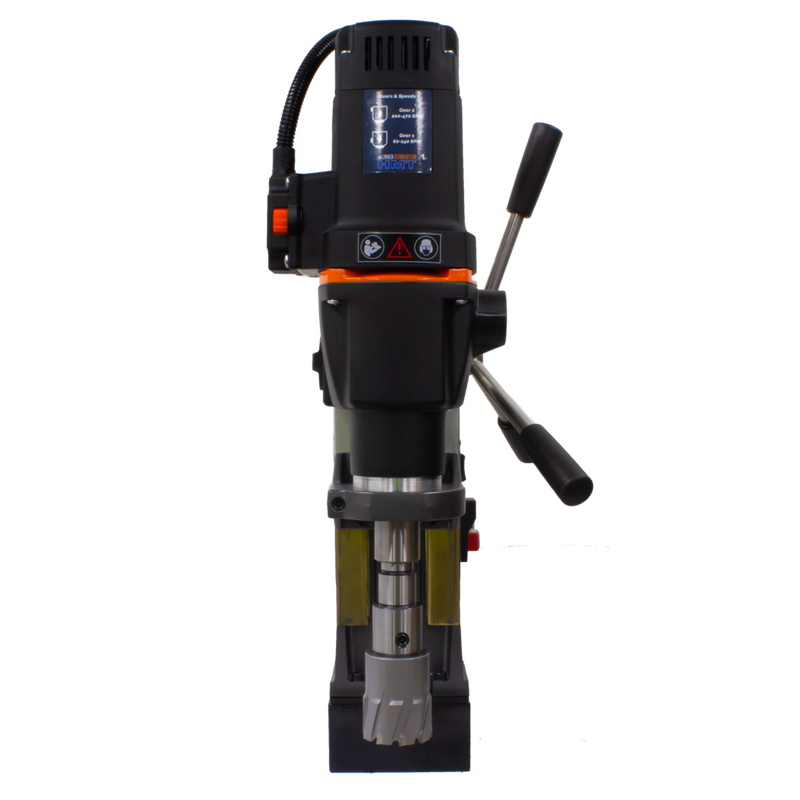

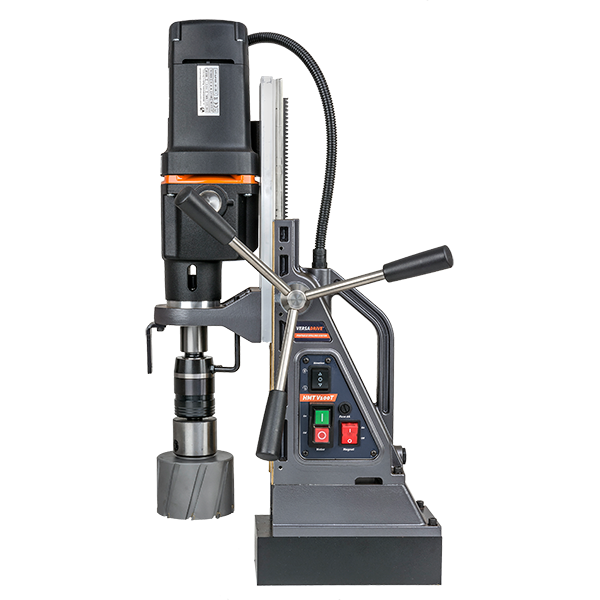

HMT Magnetic Base Dill V125T (240V) 850125-P-240 3MT

HoleMaker Technology
SKU:
3 In Stock
Regular Price £2,098.95 Sale Price Unit price: £0.00
Includes VAT

The HMT VersaDrive V125T is the first UK Built portable drilling machine range designed for the 21st century, designed to meet a need in the market for a high-performance, low-maintenance, industrial quality portable drilling unit and to deliver constant performance in the most challenging drilling environments and fabrication conditions.

Combining light weight and portability with a high power all-day broaching capability up to 125mm diameter is combined with a forward reverse, variable speed motor that will tap holes up to M32 diameter. Fully rated for reaming, countersinking, and tapping. Advanced British electromagnets provide enhanced magnet hold for exceptional safety and stability.

In addition to standard through-hole tapping, the V125T can also be used with the VersaDrive blind hole tapping system up to M30 diameter.

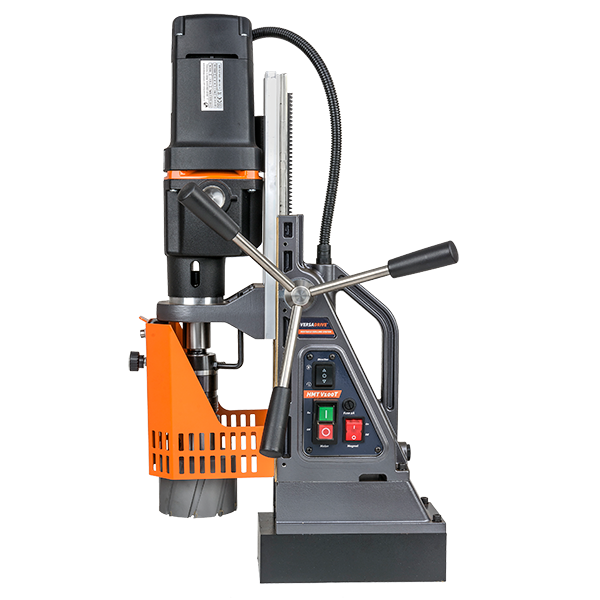

Supplied with handles, heavy duty metal sliding guard system, MT3 broaching arbor, VersaDrive arbor, heavy duty, waterproof, shock-resistant site case, gravity fed coolant system and VersaDrive Quick Change Arbor.

Technical Specification

CUTTER SIZE RANGE 12 - 125mm TCT
MAX CUTTER CAPACITY 125mm TCT
TWIST DRILL CAPACITY 32mm
MAX TAP CAPACITY M32
MAX COUNTERSINKING 65mm
LENGTH 345mm
WIDTH (Inc Handles) 240mm
HEIGHT (Min-Max) 470 - 750mm
STROKE 280mm
WEIGHT 25 kg
MAGNET (L X W) 220 x 115mm
MAGNETIC ADHESION 2200 kgs
MOTOR POWER 1800w
TOTAL POWER 1900w
SPEED RPM (No Load) 60-140 / 100-220 /
140-310 / 210-490
SPINDLE MT3
ARBOR 19,05 mm (¾€) Weldon
TAKES CHUCK Yes
COOLANT SYSTEM Gravity Oil Fed
WARRANTY 2 Year
