Fischer M16x65 ETA Hammerset Anchor Bolt (48408) 20 Box

Fischer M16x65 ETA Hammerset Anchor Bolt (48408) 20 Box

Fischer

SKU: 48408

26 In Stock

£23.95

Includes VAT

Qty

Add To Cart

Fischer M16x65 ETA Hammerset Anchor Bolt (48408) 20 Box

Drill Diameter : 20mm

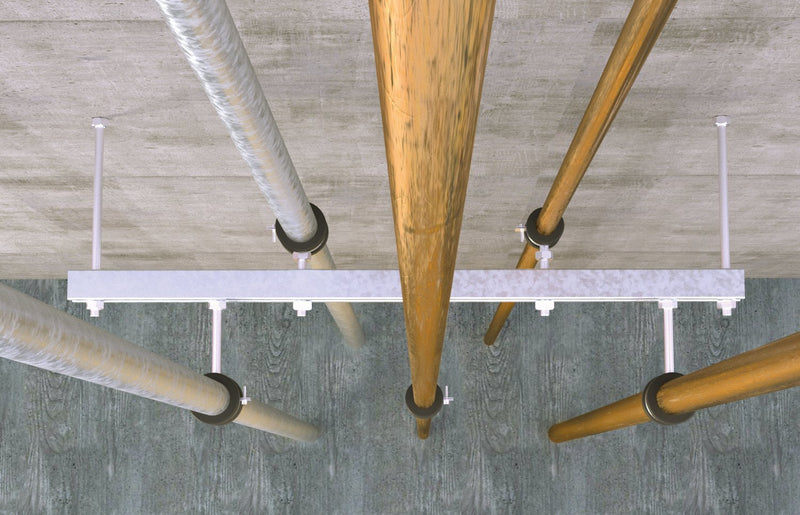

The fischer hammerset anchor EA II is an internal thread anchor made from zinc-plated and stainless steel. The fischer hammerset anchor is ideal for anchoring sprinkler systems, cable trays, and cantilevers both inside and outside. The European Technical Approval for non-cracked concrete, approval for multiple use for non-structural systems, and classification into fire resistance class R 120 offer added safety. The hammerset anchor is mounted with the hammer flush to the base material. The embossed rim prevents slipping. With the setting tool EAW H Plus or machine setting tool EA II S-SDS, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin.

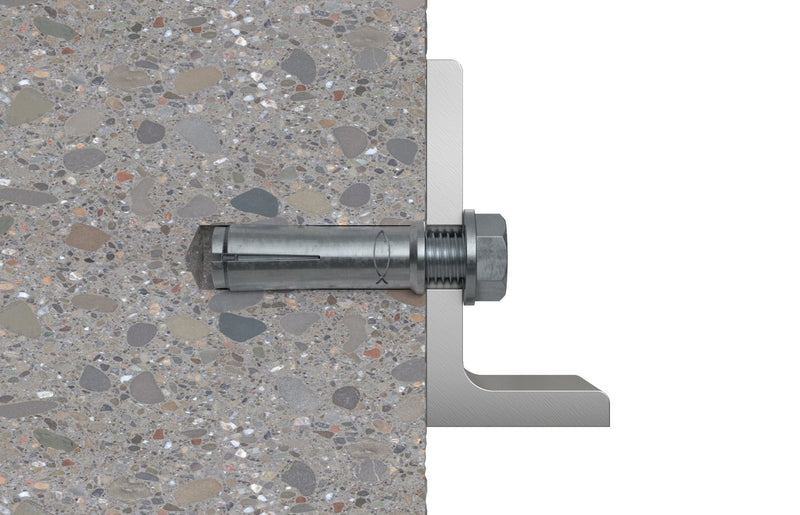

The fischer Hammerset anchor EA II is an internal threaded anchor made of zinc-plated steel. The Hammerset anchor is set flush to the surface of the anchoring base using the hammer. With the setting tool EHS Plus or the machine setting tool EMS the sleeve is expanded by driving in the internal rod and expands against the drill hole wall. For correct expansion to take place, no torque must be applied to the screw or the threaded rod. The fischer Hammerset anchor EA II is ideal for fixing sprinkler systems, gratings, and consoles in internal areas with approval.

Advantages

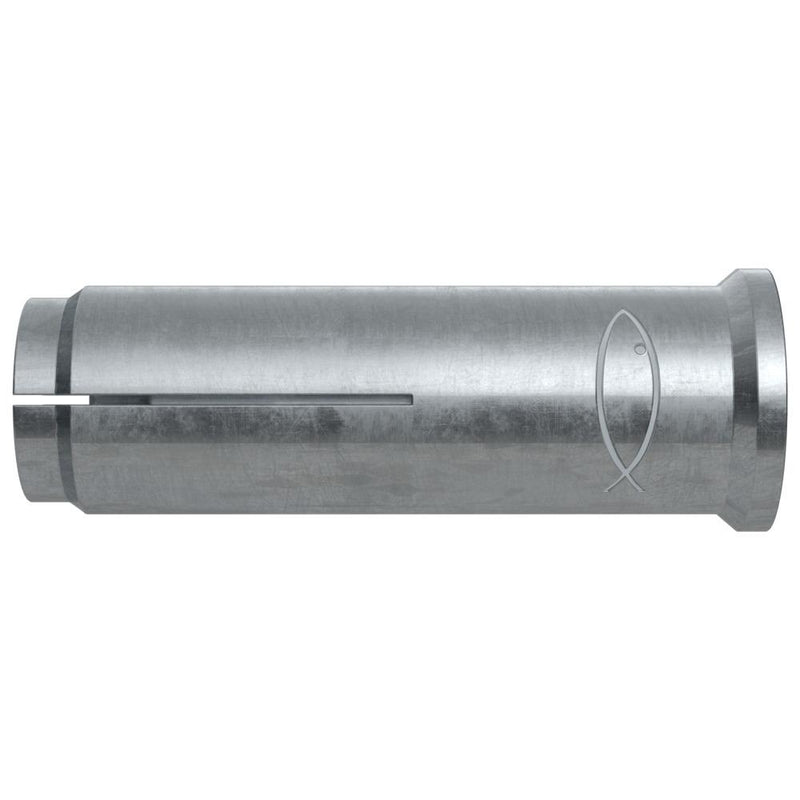

The embossed rim prevents the anchor sleeve from slipping, thus ensuring a trouble-free hammerset installation.
The metric internal thread means that it is possible to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
The EMS machine setting tool allows for effortless installation, particularly in the case of series installations.
The embossing that is applied when expanding with the EHS Plus setting tool offers a simple control of the anchoring and provides increased safety.
Fixing point at hef 25 mm prevents anchor of falling out of the drill hole before being expanded.
The black fixing point prevents the anchor from falling out of the drill hole during overhead installation.
