Esab Rogue ET201iP PRO Tig Welder

Esab
SKU: 0705002010
2 In Stock
Regular Price £829.95 Sale Price Unit price: £0.00
Includes VAT

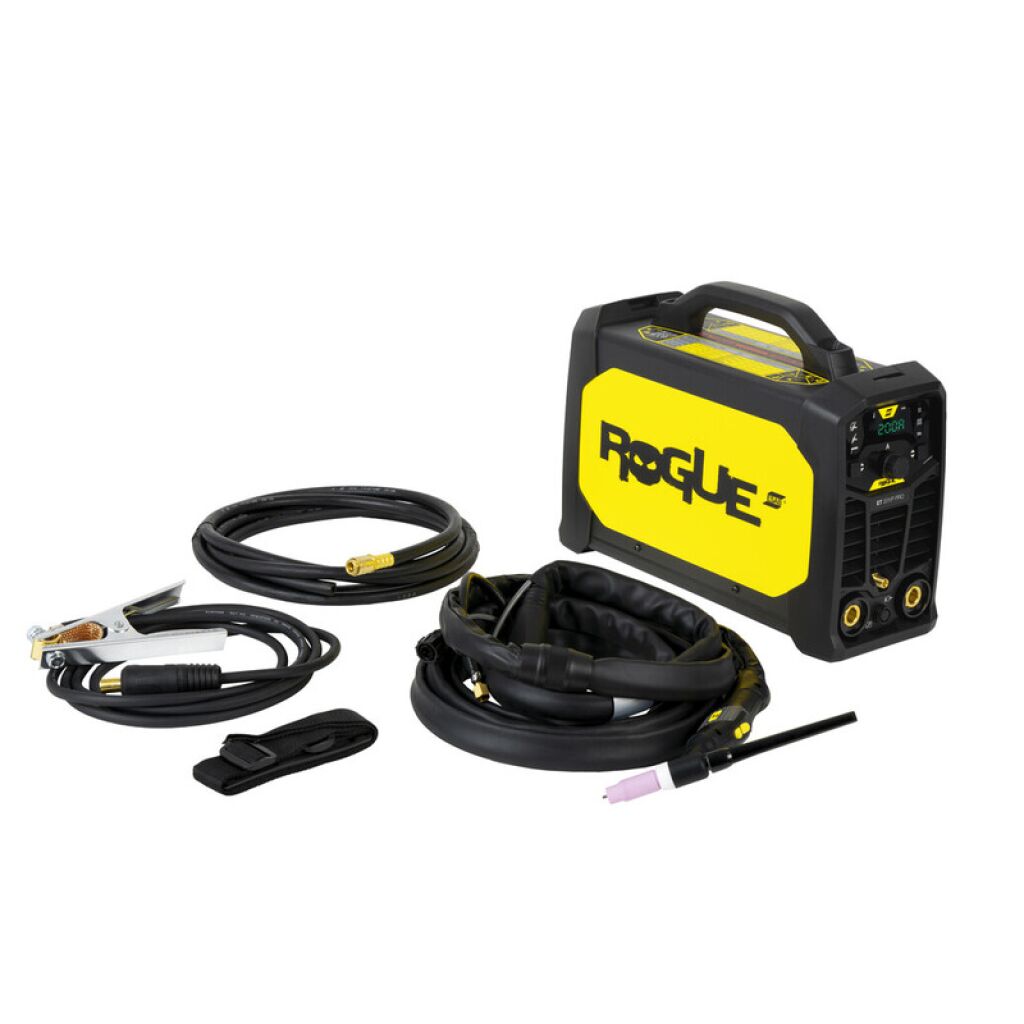

The Rogue ET are powerful high frequency start TIG machines. This easy-to-use welder is designed with a robust and durable housing that is IP23S rated. Weighing below 10 kg this lightweight welder features an ergonomic handle, carrying strap and long extension cables for maximum portability.

Rogue ET offer exceptional arc characteristics, both in TIG and MMA mode. Want more control over your welder? Rogue ET provide several TIG parameters that can be easily adjusted including gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of which can be programmed using 2 or 4 stroke mode for greater arc control. Additionally, Rogue ET offers a pulse feature with background current control and frequency adjustments up to 500 Hz for better heat input control. In Stick mode, Hot Start or Arc Force can be adjusted according to individual welding preferences or applications.

New Pulse MMA functionality enhances the performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid several welding defects.

Specifications
Input Voltage 120-230 ±15% VAC , 1 Φ, 50/60 Hz
Stick (SMAW) Welding Output 200 A28.0 V (230 V) @ 25 % Duty Cycle
129 A25.2 V (230 V) @ 60 % Duty Cycle
100 A24.0 V (230 V) @ 100 % Duty Cycle
TIG (GTAW) Welding Output 200 A18.0 V (230 V) @ 25 % Duty Cycle
129 A15.2 V (230 V) @ 60 % Duty Cycle
100 A14.0 V (230 V) @ 100 % Duty Cycle
Current Range 10-200 A
Open Circuit Voltage 78 VDC
Energy Save Mode 50 W
Operating Temp -10 to +40 °C
rated kVA 7 kVA
Enclosure Class IP23S
Dimensions, L x W x H
403 x 153 x 264 mm
Weight 9.6 kg
Setting Range
10-140 A
10-200 A
