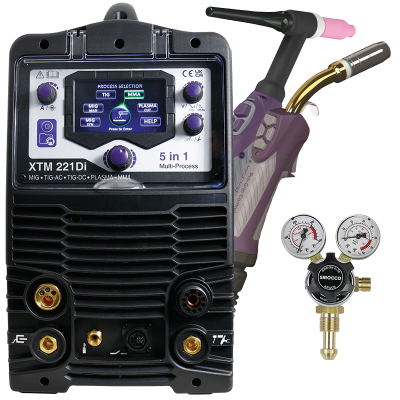

Parweld xtm221Di Plasma, Mig, AC/DC Tig ,MMa, Multi process 5 in 1

Parweld xtm221Di Plasma, Mig, AC/DC Tig ,MMa, Multi process 5 in 1

Parweld has taken our multi-process range one step further to make it truly the only machine you will need in your workshop or service van.

Building on our existing 3 in 1 and 4 in 1 models (XTM201Di, XTM211Di) the XTM221Di offers 5 in 1 process capability.

Triple gas connections mean all processes are ready to go at the push of a button, MIG, AC TIG, DC TIG, MMA, cutting and gouging using the Plasma process.

The machine uses auto polarity switching so there is no need to change the work lead connections on the front of the machine when you swap processes, which is done instantly without the need to touch the front panel.

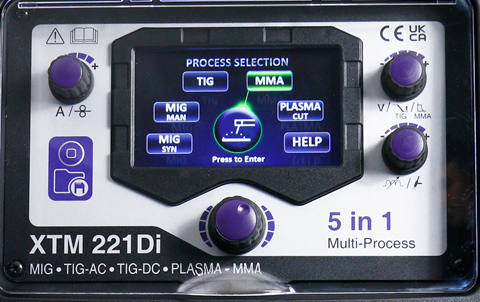

The multi-language digital user interface rapidly gets you to the correct machine setting with minimal process knowledge, on-site or in the workshop.

ACCESSORIES
Part Number Description
XTM221DI Machine with MMA leads and 3 gas hoses

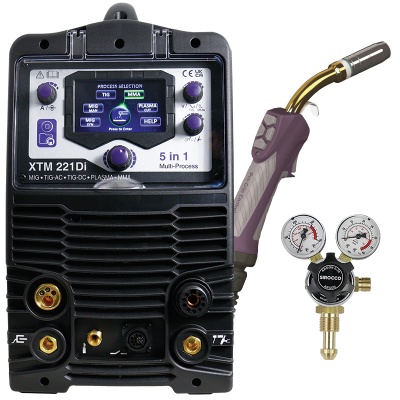

XTM221DI-P1 Machine with MMA leads and 3 gas hoses and 3M 250A
MIG torch 4 Button control type, gas regulator

XTM221DI-P2 Machine with MMA leads and 3 gas hoses, 3M 250A MIG
torch 4 Button, PRO TIG 4M torch with 3 button control,
gas regulator.

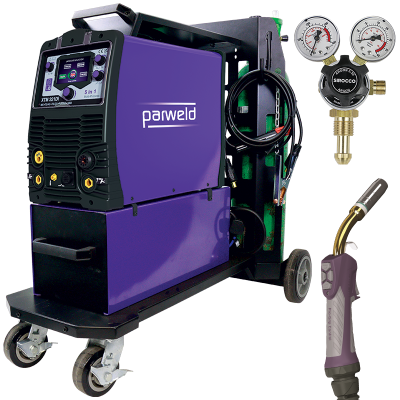

XTM221DI-P1T Machine with MMA leads and 3 gas hoses and 3M 250A
MIG torch 4 Button, Twin bottle trolley with drawer

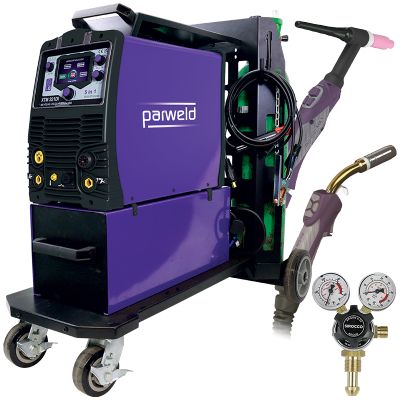

XTM221DI-P2T Machine with MMA leads and 3 gas hoses, 3M 250A MIG
torch 4 Button, PRO TIG 4M torch with 3 button control,
Twin bottle trolley with drawer, gas regulator

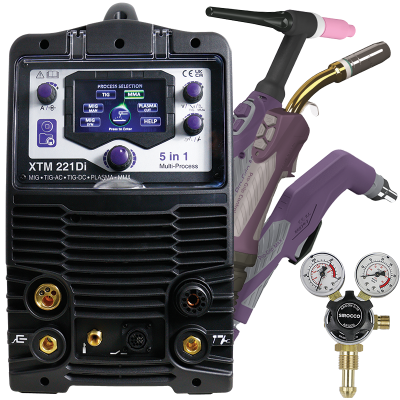

XTM221DI-P3 Machine with MMA leads and 3 gas hoses, 3M 250A MIG
torch 4 Button, PRO TIG 4M torch with 3 button control,
XTP40-6-CC plasma torch, gas regulator

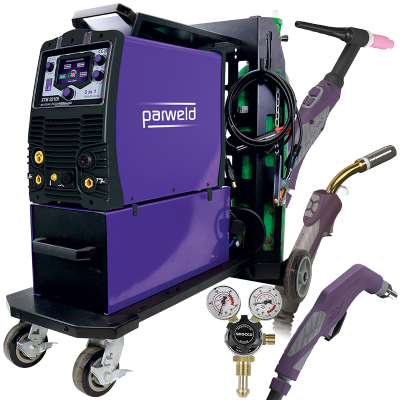

XTM221DI-P3T Machine with MMA leads and 3 gas hoses, 3M 250A MIG
torch 4 Button, PRO TIG 4M torch with 3 button control,
XTP40-6-CC plasma torch, Twin bottle trolley with drawer,
gas regulator.

Optional Accessories

TR007 Twin bottle trolley with drawer
XTI902D Wired foot control
XTI903W Wireless foot control (10m Range)
IV26-12S3BD18 PRO TIG torch with 3 button control 4m
PRO2500-30ER4 PRO MIG torch with 4 button control
PRO2500-30ER4D PRO MIG torch with OLED display
XTP40-6-CC PLASMA 60A Cutting torch

Note: Machine supplied with 0.8/1.0 V Roller as standard

WELDING CAPACITY
Process Material Size Material Range
MIG Steel Wire  0.6/0.8/0.9/1.0mm 0.6-6.0mm (10mm)*
Stainless Steel Wire 0.8/1.0    0.8-9.0mm
Aluminium Wire 0.9/1.0         1.0-5.0mm

TIG Steel (DC) - 0.8-6.0mm (10mm)*
Stainless Steel (DC) - 0.8-6.0mm (12mm)*
Aluminium (AC) - 0.6-6.0mm (8mm)*
MMA E60XX electrode 2.5/3.2/4.0 1.5-7.0mm
E70XX electrode 2.5/3.2/4.0 1.5-7.0mm

PLASMA Steel - 0.5-20mm
Stainless Steel - 0.5-20mm
Aluminium - 0.5-12mm
Note:
1) Recommended material range is 0.6 to 6mm for best performance.
2) *Absolute maximum for short periods.
3) Capacity is reduced when operating on 110V input
4) Production Cut Capacity 12mm
5) Severance Cut Capacity 20mm
DUTY CYCLES
Process 110V Input 230V Input
MIG 100A@60% 140A@30% 140A@60% 200A@30%
TIG (AC) 100A@60% 140A@30% 140A@60% 200A@30%
MMA 110A@50% 100A@60% 140A@60% 200A@30%
PLASMA 25A@20% 28A@60% 40A@30%

TECHNICAL INFORMATION
Parameter Value
Machine Style / Type Portable MIG/TIG/MMA/PLASMA
Output Current Max (A)

MIG 140 (110V) 200 (230V)
TIG 140 (110V) 200 (230V)
MMA 110 (110V) 200 (230V)
PLASMA 25 (110V) 40 (230V)

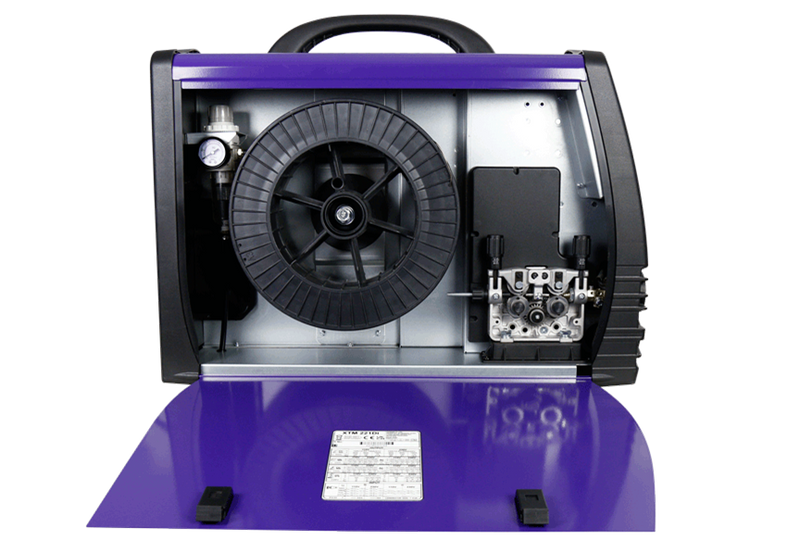

Spool Size 300mm (15kg) 200mm (5kg)
Feed Box 4 Roll
Wire Size 0.6-1.0mm
Duty Cycle (MIG) 200A @ 30%
Input Voltage 110V / 230V (Smart Switching)
Minimum Fuse Rating 32A @ 110V / 16A @ 230V
Generator Size 7 KVA
Dimensions (LxWxH mm) 650 x 275 x 495
Weight (kg) 30
