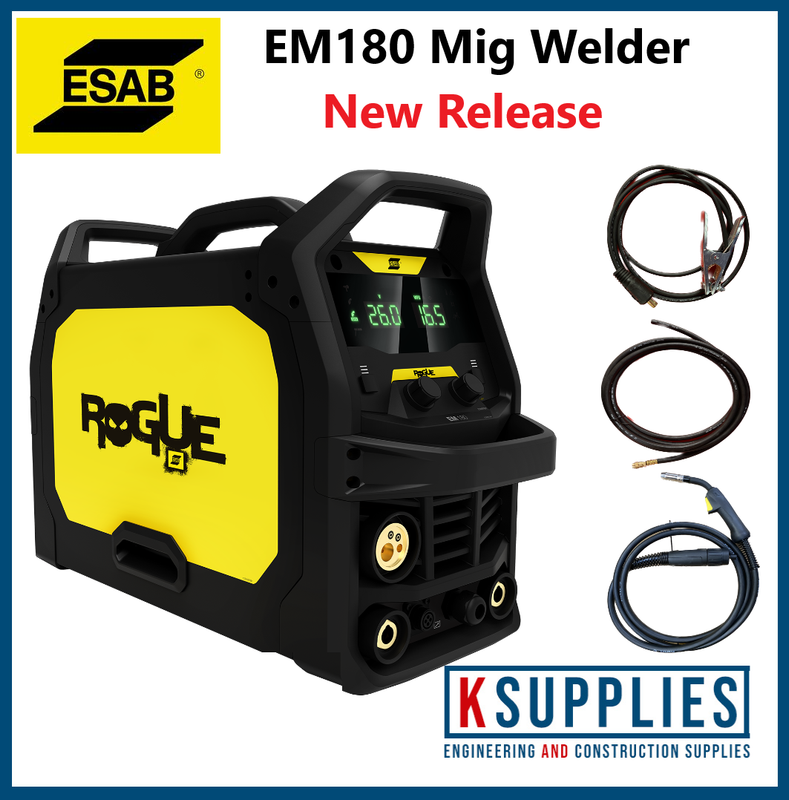

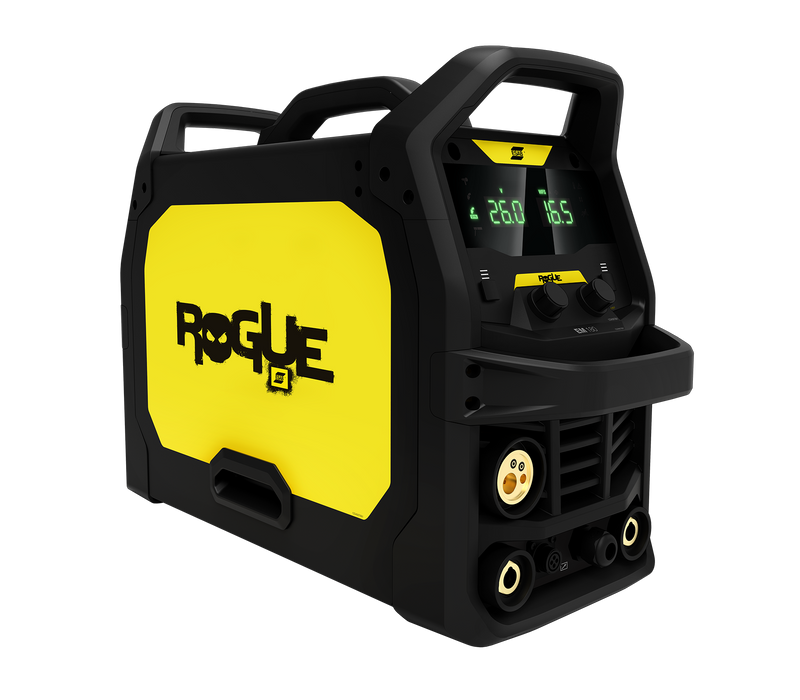

Esab EM180 Rogue Mig/mma Welder 0700301091
ESAB Rogue EM 180 is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 16.2 kg, 230V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.
Large 14 Segment Display – instantaneous feedback for both voltage and wire feed speed for clear viewing
Synergic Weld Programs – full range of welding parameters, 0.5 – 8.0 mm with single knob control
Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m
Unique rugged industrial design – supporting multiple lift points and cable management
Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
IP23S rated for indoor/outdoor use
Specifications
Mains Voltage 230 VAC ± 10%, 1ph, 50/60 Hz
Energy Save Mode 20 W
MIG (GMAW) Welding Output 180 A / 23.0 V at 25% 116 A / 19.8 V at 60% 90 A / 18.5 V at 100% MMA (SMAW) Welding Output 150 A / 26.0 V at 25% 97 A / 23.9 V at 60% 75 A / 23.0 V at 100%
Current Range 30 – 180 A 12 – 26 V
Wire Dimensions Mild Steel & Stainless Steel Cored Wire & Aluminium 0.6 – 1.0 mm
Wire Feed Speed 2.0 – 16.5 m/min
Max Spool Diameter 100 mm, 200 mm
Open Circuit Voltage 78 VDC Efficiency at Max Current 82.7%
Power Factor at Max Current 0.8
Operating Temperature -10 to +40°C
Protection Class IP23S Certification Mark (Standards) CE
Dimentions L x W x H, incl. top handle 590 x 220 x 385 mm
Weight 16.2 kg
Delivery includes:
180A MIG/MAG power source with mains cable 16 Amp European plug. 3 m,
MXL 201 MIG Torch Euro 3 m,
Return cable kit, OKC 35-50 16 mm2, 3 m,
Gas Hose with quick connect/open 4.5 m,
ESAB OK AristoRod 12.50 0.8 mm 1 kg,
ESAB GoldRox Electrode, 2.5 x 350 mm, 1 kg.
Feed rolls 0.6/0.8 mm V (fitted), 0.8/1.0 mm V and 0.8/1.0 mm VK,
Electrode Holder Work Lead (NOT INCLUDED)
Safety instruction.
